N plug 50 Ω, G44 (1.1/2.95), crimp/crimp, straight, J01020A0052
Unit Price (€ / pc.)
20.7536 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.75 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7536 €
10 pcs.
18.6949 €
50 pcs.
16.4458 €
100 pcs.
13.9825 €
*incl. VAT plus shipping costs
Subject to prior sale

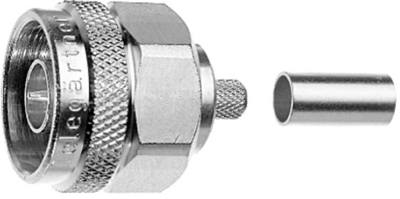

N cable connector, J01020A0052, Telegärtner
The J01020A0052 comprises widely used coaxial connector of medium size. It has a screw connection and is waterproof in the mating face. The N connector is vibration-resistant and is used in signal and data transmission. It is suitable for coaxial connections for transmitting medium power at high frequencies.
Technical specifications
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | G44 (1.1/2.95) | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp/crimp | |
| Version | plug |
Download
Logistics
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
