100123526 | Telegärtner

BNC socket 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, straight, 100123526

Order No.: 80F1300
EAN: 4018359863562
MPN:
100123526
Series: BNC
100123526 Telegärtner Coaxial Connectors Image 1
100123526 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.6600 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
16.66 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6600 €
10 pcs.
15.4700 €
25 pcs.
14.4347 €
50 pcs.
13.1257 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, 100123526, Telegärtner

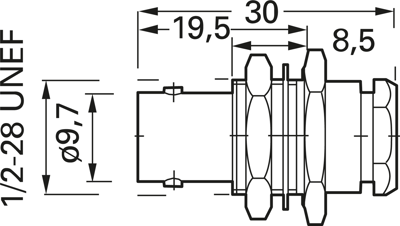

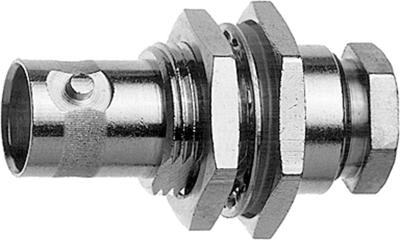

BNC Bulkhead Jack G7 (RG-316/U), IP 54

Technical Data

  • Design: Jack
  • Connector type: BNC
  • Cable group: RG 316/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector BNC
Cable Group RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
Design straight
Contact material brass
Contact connection other
Version socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
