100027730 | Telegärtner
FME jack 50 Ω, 1.5/3.8, crimp connection, straight, 100027730
Unit Price (€ / pc.)
3.1059 € *
Available: 30 pcs.
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.8798 €
25 pcs.
2.6894 €
50 pcs.
2.4395 €
*incl. VAT plus shipping costs
Subject to prior sale

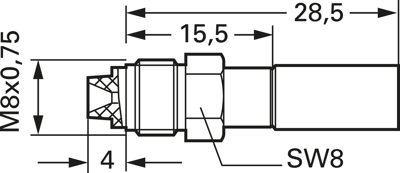

Coaxial connector, J01701A0003, Telegärtner
FME Straight Jack Crimp G30 G30 (1.5/3.8), G54 (1.5/3.8 FLEX)
This product is a miniature coax connector with screw coupling. It can be used up to a frequency of 2 GHz. Applications for this connector is in the area of mobile communications, especially in vehicles due to their compact size and durability.
Technical Data
- Design: Jack
- Connector type: FME
- Cable group: 1.5/3.8
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Cable Group | 1.5/3.8 | |
| Contact connection | crimp connection | |
| Connector | FME | |
| Design | straight | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
