100027689 | Telegärtner

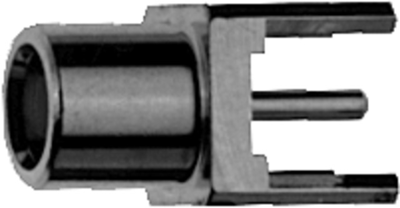

MCX socket 50 Ω, solder/crimp connection, straight, 100027689
Unit Price (€ / pc.)
8.0682 € *
Available: 157 pcs.
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0682 €
10 pcs.
7.0924 €
100 pcs.
6.2237 €
250 pcs.
5.9857 €
1000 pcs.
5.6049 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01271A0131, Telegärtner
MCX PCB Receptacle, female
This product utilizes a snap coupling and is suitable for use up to 6 GHz. Because of their small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Jack
- Connector type: MCX
- Cable group: other
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | MCX | |
| Cable Group | other | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/crimp connection | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
