100027685 | Telegärtner

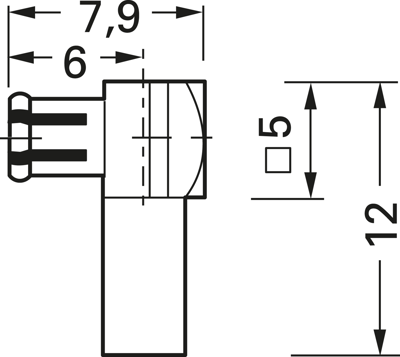

MCX plug 50 Ω, RD-316, solder/crimp connection, angled, 100027685
Unit Price (€ / pc.)
6.2356 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.7953 €
25 pcs.
5.4026 €
50 pcs.
4.9147 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01270A0221, Telegärtner
MCX Angle Plug Crimp G8 (RD-316)
This product utilizes a snap coupling and is suitable for use up to 6 GHz. Because of their small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Plug
- Connector type: MCX
- Cable group: RD 316
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder/crimp connection | |
| Connector | MCX | |
| Impedance | 50 Ω | |
| Cable Group | RD-316 | |
| Product type | plug | |
| Design | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
