100027684 | Telegärtner

MCX plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, solder/crimp connection, angled, 100027684

Order No.: 77F934
EAN: 4018359258672
MPN:
100027684
J01270A0211Z
Series: MCX
100027684 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
6.1880 € *
Available: 228 pcs.
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1880 €
10 pcs.
5.7477 €
25 pcs.
5.3669 €
50 pcs.
4.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01270A0211, Telegärtner

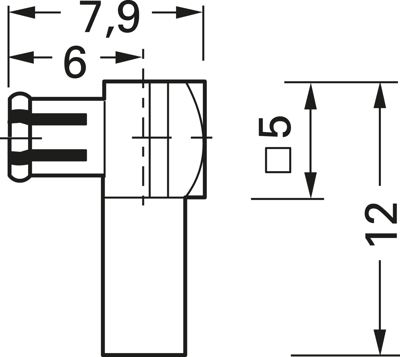

MCX Angle Plug Crimp G7 (RG-316/U)

This product utilizes a snap coupling and is suitable for use up to 6 GHz. Because of their small size, this connector has applications in small instruments and communication equipment.

Technical Data

  • Design: Plug
  • Connector type: MCX
  • Cable group: RG 316/U
  • Connection type: Solder/Crimp
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Contact connection solder/crimp connection
Version plug
Connector MCX
Cable Group RG-174/U, RG-188A/U, RG-316/U
Design angled
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
