100027648 | Telegärtner

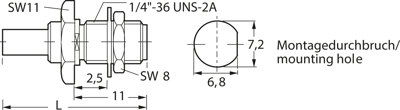

SMA panel socket 50 Ω, RG-223/U, RG-400/U, RG-142B/U, solder/crimp connection, straight, 100027648

Order No.: 76F300
EAN: 4018359258559
MPN:
100027648
J01151A0011Z
Series: SMA
100027648 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
9.0321 € *
Available: 10 pcs.
Total Price:
9.03 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0321 €
10 pcs.
8.3776 €
25 pcs.
7.8302 €
50 pcs.
7.1162 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01151A0011, Telegärtner

SMA Bulkhead Jack Crimp G5 (RG-223/U), RG-142B/U

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

  • Design: Jack
  • Connector type: SMA
  • Cable group: RG 223/U
  • Connection type: Solder/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Product type panel socket
Impedance 50 Ω
Connector SMA
Cable Group RG-223/U, RG-400/U, RG-142B/U
Design straight
Contact material brass
Contact connection solder/crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
