100025268 | Telegärtner

4.3/10 socket 50 Ω, RFF 1/2''-50, FSJA-50B, HFSC 12D, clamp/clamp, straight, 100025268

Order No.: 80F1805
EAN: 4018359472306
MPN:
100025268
J01441A0010
Series: COAX 4.3/10

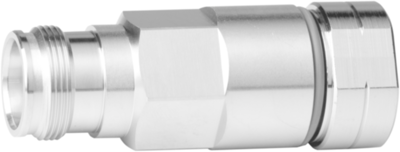

100025268 Telegärtner Coaxial Connectors Image 1
100025268 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
44.2442 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
44.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.2442 €

Coaxial connector, J01441A0010, Telegärtner

4.3-10 Straight jack, clamp/clamp, G23 (1/2" Flex), SIMFix Pro

This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.

Technical Data

  • Design: Jack
  • Connector type: F
  • Cable group: RG 59
  • Connection type: Clamp/Clamp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Impedance 50 Ω
Connector 4.3/10
Cable Group RFF 1/2''-50, FSJA-50B, HFSC 12D
Design straight
Contact material brass
Contact connection clamp/clamp
Version socket
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
