100024999 | Telegärtner

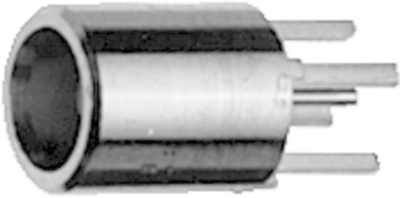

MCX socket 50 Ω, straight, 100024999
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: On Request
Coaxial connector, J01271A0141, Telegärtner
MCX PCB Receptacle, female
This product utilizes a snap coupling and is suitable for use up to 6 GHz. Because of their small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Jack
- Connector type: MCX
- Cable group: other
- Connection type: other
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | MCX | |
| Cable Group | other | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | other | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
