100024994 | Telegärtner

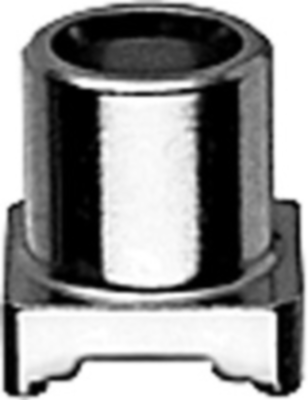

MCX socket 50 Ω, straight, 100024994

Order No.: 80F1711
EAN: 4018359192914
MPN:
100024994
J01271A0031
Series: MCX
100024994 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
4.3435 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3435 €

Coaxial connector, J01271A0031, Telegärtner

MCX PCB Receptacle, female, in SMT technical data on request

This product utilizes a snap coupling and is suitable for use up to 6 GHz. Because of their small size, this connector has applications in small instruments and communication equipment.

Technical Data

  • Design: Jack
  • Connector type: MCX
  • Cable group: other
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector MCX
Cable Group other
Design straight
Contact material brass
Contact connection other
Version socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
