100024923 | Telegärtner

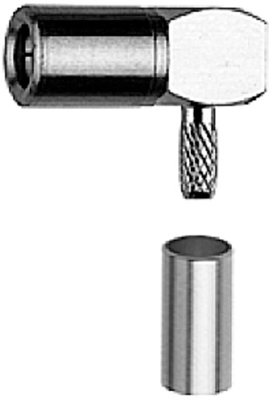

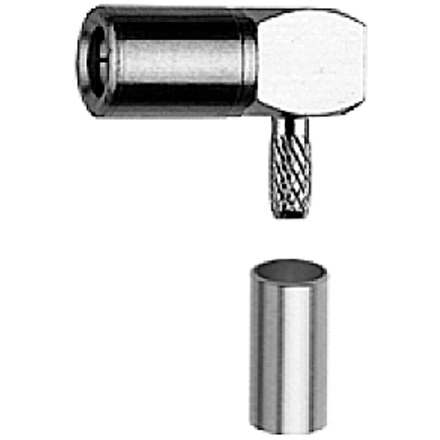

SMB jack 50 Ω, KX-21A, RG-178B/U, RG-196A/U, solder/crimp connection, angled, 100024923
Unit Price (€ / pc.)
13.6731 € *
Available: 3 pcs.
Total Price:
13.67 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6731 €
10 pcs.
12.6973 €
25 pcs.
11.8524 €
50 pcs.
10.7695 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01191A0041, Telegärtner
SSMB Angle Jack Crimp, G3 (RG-178B/U)
This product utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. Connector designs are available for flexible cables like RG-316 and RG-178. Because of the small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Jack
- Connector type: SMB
- Cable group: RG 178B/U
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Impedance | 50 Ω | |
| Connector | SMB | |
| Cable Group | KX-21A, RG-178B/U, RG-196A/U | |
| Design | angled | |
| Contact material | brass | |
| Contact connection | solder/crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
