100024919 | Telegärtner
SSMB plug 50 Ω, KX-21A, RG-178B/U, RG-196A/U, crimp connection, straight, 100024919
Unit Price (€ / pc.)
9.3653 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.37 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3653 €
10 pcs.
8.6870 €
25 pcs.
8.1158 €
50 pcs.
7.3780 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01190A0101, Telegärtner

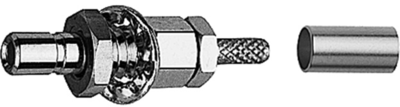

SSMB Bulkhead Plug Crimp G3 (RG-178B/U) rear mounting
This product utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. Connector designs are available for flexible cables like RG-316 and RG-178. Because of the small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Plug
- Connector type: SMB
- Cable group: RG 178B/U
- Connection type: Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Impedance | 50 Ω | |
| Connector | SSMB | |
| Cable Group | KX-21A, RG-178B/U, RG-196A/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
