100024918 | Telegärtner

SMB plug 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, straight, 100024918

Order No.: 77F892
EAN: 4018359126261
MPN:
100024918
J01190A0051
Series: SMB

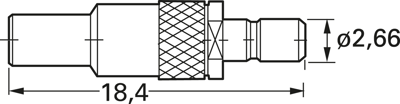

100024918 Telegärtner Coaxial Connectors Image 1

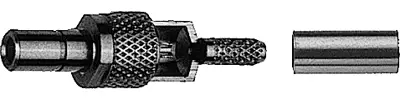

100024918 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.5676 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.57 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5676 €
10 pcs.
8.8774 €
25 pcs.
8.2943 €
50 pcs.
7.5327 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01190A0051, Telegärtner

SSMB Straight Plug Crimp G7 (RG-316/U)

This product utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. Connector designs are available for flexible cables like RG-316 and RG-178. Because of the small size, this connector has applications in small instruments and communication equipment.

Technical Data

  • Design: Plug
  • Connector type: SMB
  • Cable group: RG 316/U
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Connector SMB
Impedance 50 Ω
Cable Group RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
Product type plug
Design straight
Contact material brass
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
