100024759 | Telegärtner
R-SMA panel socket 50 Ω, RG-58C/U, solder/crimp connection, straight, 100024759
Unit Price (€ / pc.)
8.5204 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.52 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5204 €
10 pcs.
7.9135 €
25 pcs.
7.3899 €
50 pcs.
6.7116 €
*incl. VAT plus shipping costs
Subject to prior sale

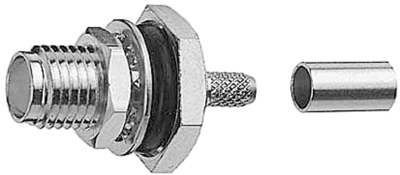

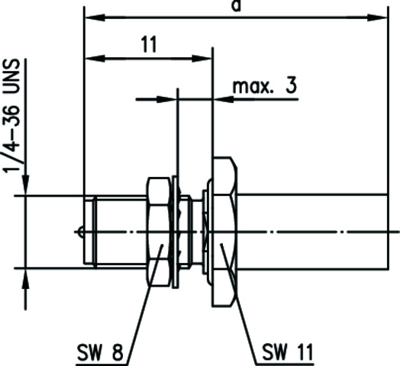

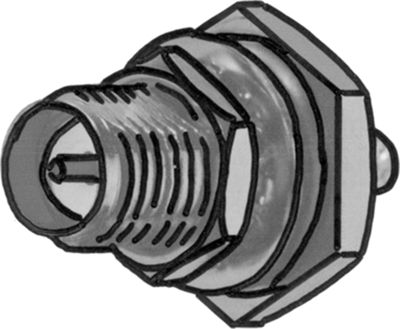

Coaxial connector, J01151R0001, Telegärtner
R-SMA bulkhead jack G1 (RG-58C/U) solder/crimp
This product is supplied with a threaded coupling, vibration resistant and can be used up to frequencies of over 6 GHz (depending on type). The impedance is controlled at 50 Ω.
Technical Data
- Design: Jack
- Connector type: R-SMA
- Cable group: RG 58C/U
- Connection type: Solder/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Impedance | 50 Ω | |
| Connector | R-SMA | |
| Cable Group | RG-58C/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
