100024683 | Telegärtner

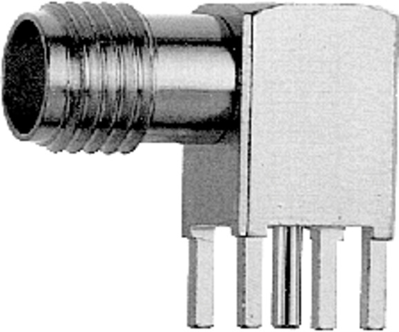

SMA panel socket 50 Ω, angled, 100024683

Order No.: 76F460
EAN: 4018359121365
MPN:
100024683
J01151A0191
Series: SMA
Telegärtner
100024683 Telegärtner Coaxial Connectors
Image may differ
Print
Key Specification:
Product type panel socket
Impedance 50 Ω
Connector SMA
Cable Group other
Design angled
Show variants: 6
Download Datasheet Technical specifications
Unit Price (€ / pc.)
8.5561 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
42.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
8.5561 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Coaxial connector, J01151A0191, Telegärtner

SMA PCB Angle Jack

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

  • Design: Jack
  • Connector type: SMA
  • Cable group: other
  • Connection type: other
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Product type panel socket
Impedance 50 Ω
Connector SMA
Cable Group other
Design angled
Contact material brass
Contact connection other
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
Substance description Lead
