100024632 | Telegärtner

SMA plug 50 Ω, KX-21A, RG-178B/U, RG-196A/U, angled, 100024632

Order No.: 76F232
EAN: 4018359241254
MPN:
100024632
J01150A0541
Series: SMA

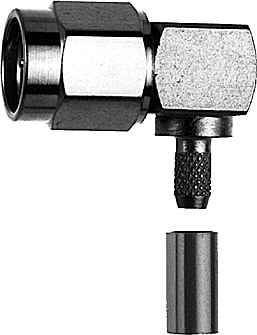

100024632 Telegärtner Coaxial Connectors Image 1
100024632 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.0805 € *
Available: 43 pcs.
Total Price:
7.08 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0805 €
10 pcs.
6.5807 €
25 pcs.
6.1404 €
50 pcs.
5.5811 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01150A0541, Telegärtner

SMA Angle Plug Crimp G3 (RG-178B/U)

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

  • Design: Plug
  • Connector type: SMA
  • Cable group: RG 178B/U
  • Connection type: other
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector SMA
Cable Group KX-21A, RG-178B/U, RG-196A/U
Design angled
Contact material brass
Contact connection other
Version plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
