100024412 | Telegärtner
7/16 plug 50 Ω, UT-250, solder/solder, straight, 100024412
Unit Price (€ / pc.)
32.3680 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
32.37 € *
Price list
Quantity
Price per unit*
1 pcs.
32.3680 €
5 pcs.
30.6901 €
10 pcs.
28.7147 €
25 pcs.
26.1800 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01120B0083, Telegärtner

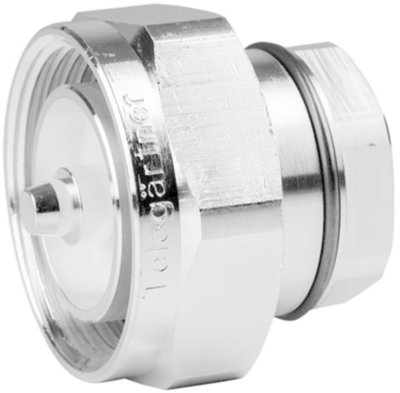

7-16 Straight Plug G9 (UT-250)
This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.
Technical Data
- Design: Plug
- Connector type: 7/16
- Cable group: UT-250
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | 7/16 | |
| Cable Group | UT-250 | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/solder | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
