100024340 | Telegärtner

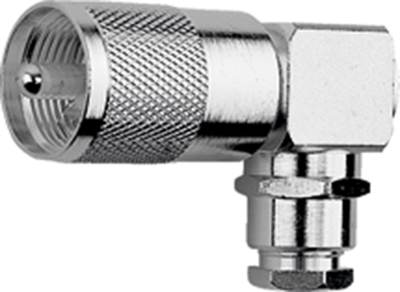

UHF plug 50 Ω, RG-58C/U, RG-141, RG-142, RG-223, solder/clamp, angled, 100024340
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
18.3617 € *
Standard delivery time from the manufacturer is: On Request
Coaxial connector, J01040B1201, Telegärtner
UHF Angle Plug, G1 (RG-58C/U), G5 (RG-223/U), RG141 A/U, RG-142 B/U
This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.
Technical Data
- Design: Plug
- Connector type: UHF
- Cable group: RG 58C/U
- Connection type: Solder/Clamp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Impedance | 50 Ω | |
| Connector | UHF | |
| Cable Group | RG-58C/U, RG-141, RG-142, RG-223 | |
| Design | angled | |
| Contact material | brass | |
| Contact connection | solder/clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Dodecamethylcyclohexasiloxane | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
