100024337 | Telegärtner

UHF plug 50 Ω, RG-58C/U, solder connection, straight, 100024337

Order No.: 78F303
EAN: 4018359114442
MPN:
100024337
J01040B0604
Series: COAX

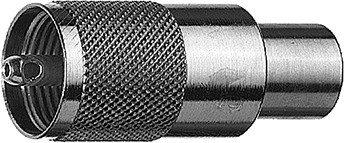

100024337 Telegärtner Coaxial Connectors Image 1

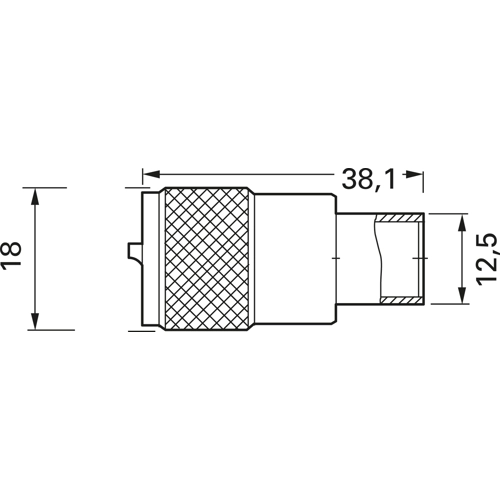

100024337 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.7945 € *
Available: 28 pcs.
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
10 pcs.
7.2352 €
25 pcs.
6.7592 €
50 pcs.
6.1404 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01040B0604, Telegärtner

UHF Straight Plug G1 (RG-58C/U), G2 (RG-59B/U) Insulator: PTFE

This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.

Technical Data

  • Design: Plug
  • Connector type: UHF
  • Cable group: RG 58C/U
  • Connection type: Solder/Solder
  • Angled connector: false
  • Insulated mounting: true
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector UHF
Cable Group RG-58C/U
Design straight
Contact material brass
Contact connection solder connection
Version plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
