100024332 | Telegärtner

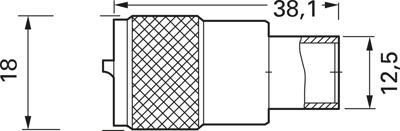

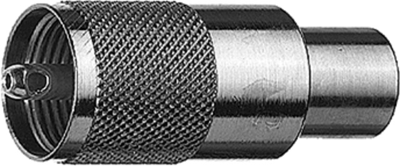

UHF plug 50 Ω, RG-213/U, solder connection, straight, 100024332
Order No.: 78F300
EAN: 4018359114305
MPN:
100024332
J01040A0602
This item is no longer available.
As an alternative, we recommend the following item:
UHF plug 50 Ω, RG-213/U, straight, 100024336
Order No.: 78F302
Manufacturer: Telegärtner
per pc. 8.5561 € *
Coaxial connector, J01040A0602, Telegärtner
UHF Straight Plug RG-213/U Insulator: POM
This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.
Technical Data
- Design: Plug
- Connector type: UHF
- Cable group: RG 213/U
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: true
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Impedance | 50 Ω | |
| Connector | UHF | |
| Cable Group | RG-213/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
