100024323 | Telegärtner

UHF plug 50 Ω, RG-213/U, crimp/crimp, straight, 100024323

Order No.: 78F3046
EAN: 4018359114275
MPN:
100024323
J01040A0006
Series: COAX

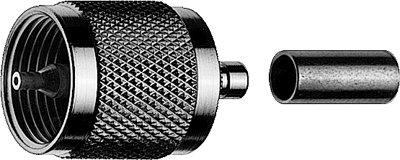

100024323 Telegärtner Coaxial Connectors Image 1
100024323 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.6866 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
9.69 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6866 €
10 pcs.
8.9964 €
25 pcs.
8.4014 €
50 pcs.
7.6398 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01040A0006, Telegärtner

UHF Straight Plug Crimp RG-213/U crimp/crimp

This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.

Technical Data

  • Design: Plug
  • Connector type: UHF
  • Cable group: RG 213/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector UHF
Cable Group RG-213/U
Design straight
Contact material brass
Contact connection crimp/crimp
Version plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
