100024091 | Telegärtner

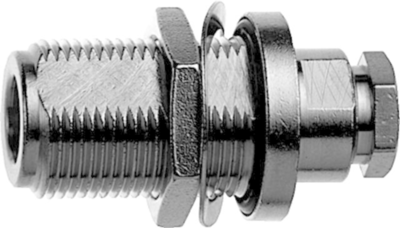

N panel socket 50 Ω, RG-405, Belden 1671A, solder/solder, straight, 100024091
Unit Price (€ / pc.)
15.0654 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.07 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0654 €
10 pcs.
13.9944 €
25 pcs.
13.0662 €
50 pcs.
11.8762 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01021H0087, Telegärtner
N Bulkhead Jack G11 (UT-85) IP 67
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: N
- Cable group: UT-85
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | RG-405, Belden 1671A | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/solder | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
