100024082 | Telegärtner

N flange socket 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, straight, 100024082

Order No.: 78F3694
EAN: 4018359112622
MPN:
100024082
J01021H0022
Series: N

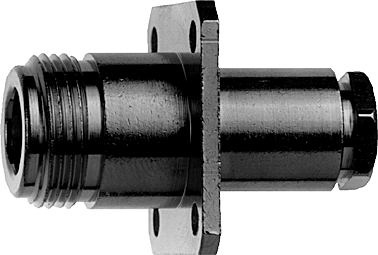

100024082 Telegärtner Coaxial Connectors Image 1

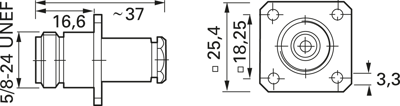

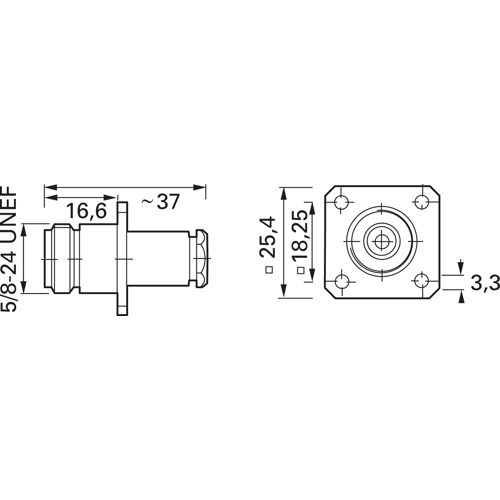

100024082 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.1368 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.14 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1368 €
10 pcs.
14.0539 €
25 pcs.
13.1257 €
50 pcs.
11.9238 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01021H0022, Telegärtner

N Panel Jack G7 (RG-316/U) IP 67

This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: N
  • Cable group: RG 316/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector N
Cable Group RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
Design straight
Contact material brass
Contact connection other
Version flange socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
