100023907 | Telegärtner

N plug 50 Ω, RG-402, Belden 1673A, straight, 100023907

Order No.: 78F340
EAN: 4018359247782
MPN:
100023907
J01020A0109
Series: N

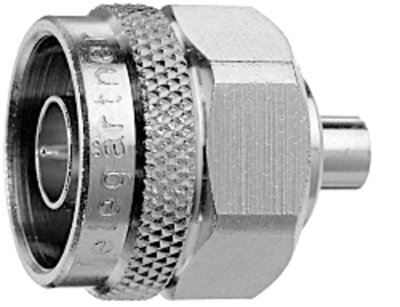

100023907 Telegärtner Coaxial Connectors Image 1
100023907 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.8183 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.82 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8183 €
10 pcs.
7.2590 €
25 pcs.
6.7711 €
50 pcs.
6.1523 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01020A0109, Telegärtner

N Straight Plug G10 (UT-141)

This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.

Technical Data

  • Design: Plug
  • Connector type: N
  • Cable group: UT-141
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector N
Cable Group RG-402, Belden 1673A
Design straight
Contact material brass
Contact connection other
Version plug
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
