100023827 | Telegärtner

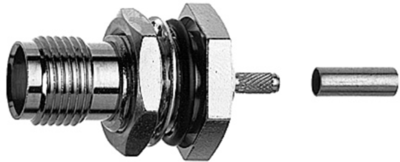

TNC panel socket 75 Ω, RG-179B/U, crimp/crimp, straight, 100023827
Unit Price (€ / pc.)
9.3058 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.31 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3058 €
10 pcs.
8.6394 €
25 pcs.
8.0682 €
50 pcs.
7.3304 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01013B0008, Telegärtner
TNC Bulkhead Jack Crimp G4 (RG-179B/U) crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: RG 179B/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 75 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Connector | TNC | |
| Cable Group | RG-179B/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp/crimp | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
