100023792 | Telegärtner

TNC panel socket 50 Ω, angled, 100023792

Order No.: 77F875
EAN: 4018359108823
MPN:
100023792
J01011A2948
Series: TNC
Telegärtner

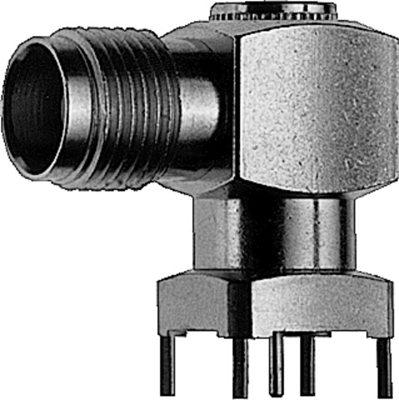

100023792 Telegärtner Coaxial Connectors Image 1

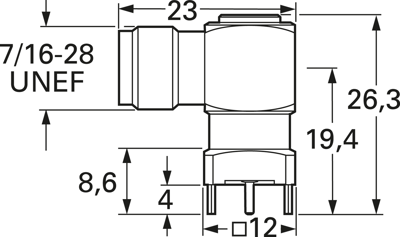

100023792 Telegärtner Coaxial Connectors Image 2
Image may differ
Print
Key Specification:
Product type panel socket
Impedance 50 Ω
Connector TNC
Cable Group other
Design angled
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
11.8167 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.8167 €
Description
Technical specifications
Download
Logistics
Compliance

Coaxial connector, J01011A2948, Telegärtner

TNC PCB Angle Jack

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: TNC
  • Cable group: other
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Product type panel socket
Impedance 50 Ω
Connector TNC
Cable Group other
Design angled
Contact material brass
Articles of same specification 0
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
