100023779 | Telegärtner
TNC panel socket 50 Ω, straight, 100023779
Unit Price (€ / pc.)
18.0761 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.08 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0761 €
10 pcs.
16.7909 €
25 pcs.
15.6723 €
50 pcs.
14.2443 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01011A0071, Telegärtner

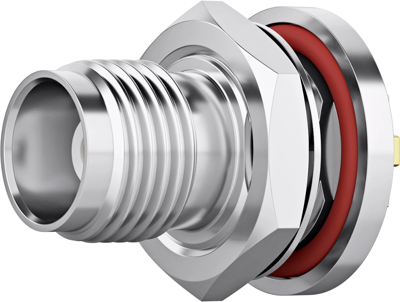

TNC panel socket for printed circuits, barrier sealed
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections..
Technical Data
- Design: Jack
- Connector type: TNC
- Angled connector: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | TNC | |
| Design | straight | |
| Product type | panel socket | |
| Contact material | nickel copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
