100023760 | Telegärtner

TNC jack 50 Ω, RG-58C/U, straight, 100023760

Order No.: 77F8326
EAN: 4018359108472
MPN:
100023760
J01011A0014
Series: TNC
100023760 Telegärtner Coaxial Connectors Image 1
100023760 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.3296 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.33 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3296 €
10 pcs.
8.6632 €
25 pcs.
8.0801 €
50 pcs.
7.3423 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01011A0014, Telegärtner

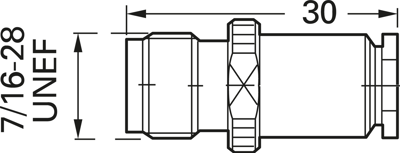

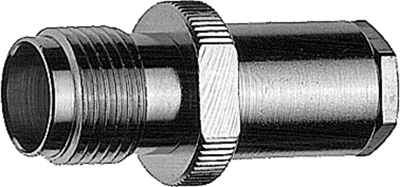

TNC Straight Jack G1 (RG-58C/U), LMR-195

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: TNC
  • Cable group: RG 58C/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Product type jack
Impedance 50 Ω
Connector TNC
Cable Group RG-58C/U
Design straight
Contact material brass
Contact connection other
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
