100023747 | Telegärtner

R TNC plug 50 Ω, Belden 7806A, Belden 9907, HPF 195, KX-15, LMR-195, RG-58C/U, crimp connection, straight, 100023747

Order No.: 77F732
EAN: 4018359280970
MPN:
100023747
J01010R0000
Series: R-TNC

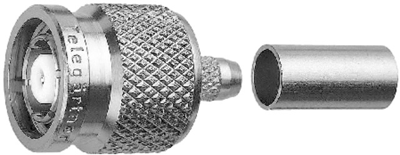

100023747 Telegärtner Coaxial Connectors Image 1

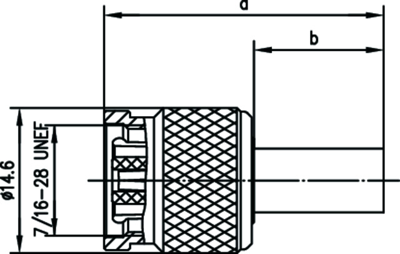

100023747 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9611 € *
Available: 11 pcs.
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
10 pcs.
7.3899 €
25 pcs.
6.9020 €
50 pcs.
6.2713 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01010R0000, Telegärtner

R-TNC Straight Plug G1 (RG-58C/U), crimp/crimp

This product is supplied with a threaded coupling, vibration resistant. The impedance is controlled at 50 Ω.

Technical Data

  • Design: Plug
  • Connector type: R-TNC
  • Cable group: RG 58C/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector R TNC
Cable Group Belden 7806A, Belden 9907, HPF 195, KX-15, LMR-195, RG-58C/U
Design straight
Contact material brass
Contact connection crimp connection
Version plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
