100023722 | Telegärtner

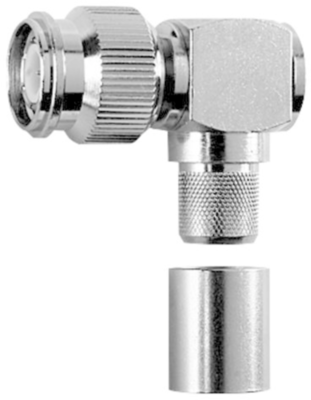

TNC plug 50 Ω, RG-214/U, RG-393/U, solder/crimp connection, angled, 100023722

Order No.: 80F1220
EAN: 4018359342234
MPN:
100023722
J01010A0065
Series: TNC
100023722 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
22.0745 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
22.07 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0745 €
5 pcs.
20.9321 €
10 pcs.
19.5874 €
25 pcs.
17.8619 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01010A0065, Telegärtner

TNC Angle Plug Crimp RG-214/U, RG-393/U solder/crimp

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Plug
  • Connector type: TNC
  • Cable group: RG 214/U, RG 393/U
  • Connection type: Solder/Crimp
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector TNC
Cable Group RG-214/U, RG-393/U
Design angled
Contact material brass
Contact connection solder/crimp connection
Version plug
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
