100023704 | Telegärtner

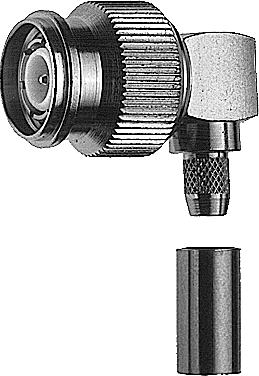

TNC plug 50 Ω, 1.5/3.8, solder/crimp connection, angled, 100023704
Unit Price (€ / pc.)
8.2348 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
8.23 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2348 €
10 pcs.
7.6517 €
25 pcs.
7.1400 €
50 pcs.
6.4855 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01010A0037, Telegärtner
TNC Angle Plug Crimp G30 (1.5/3.8), G54 (1.5/3.8 FLEX), solder/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections..
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: 1.5/3.8
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | TNC | |
| Cable Group | 1.5/3.8 | |
| Design | angled | |
| Contact material | brass | |
| Contact connection | solder/crimp connection | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
