100023577 | Telegärtner
BNC panel socket 75 Ω, solder connection, straight, 100023577
Unit Price (€ / pc.)
10.4125 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.41 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4125 €
10 pcs.
9.6747 €
25 pcs.
9.0202 €
50 pcs.
8.1991 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01003C1286, Telegärtner

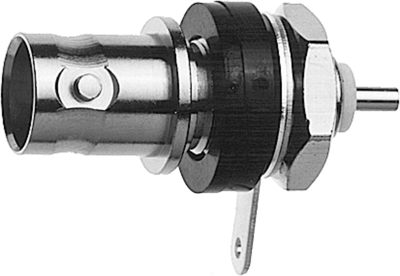

BNC Bulkhead Socket, insulated with red insulating washers
Technical Data
- Design: Jack
- Connector type: BNC
- Cable group: other
- Connection type: Solder
- Angled connector: false
- Insulated mounting: false
- Impedance: 75 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Impedance | 75 Ω | |
| Connector | BNC | |
| Cable Group | other | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
