100023569 | Telegärtner

BNC panel socket 75 Ω, solder connection, straight, 100023569

Order No.: 78F2478
EAN: 4018359105532
MPN:
100023569
J01003A1947
Series: BNC

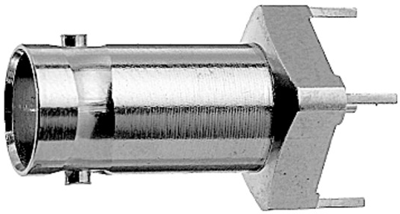

100023569 Telegärtner Coaxial Connectors Image 1
100023569 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.9861 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
4.9861 €

Coaxial connector, J01003A1947, Telegärtner

BNC Receptacle for Printed Circuits

Technical Data

  • Design: Jack
  • Connector type: BNC
  • Connection type: Solder/Solder
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 75 Ω
Technical specifications
Filter Property Value
Contact material brass
Design straight
Connector BNC
Contact connection solder connection
Version panel socket
Impedance 75 Ω
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
