100023555 | Telegärtner

BNC panel socket 75 Ω, RG-59B/U, 0.6-3.7, 0.6L-3.7, straight, 100023555

Order No.: 78F252
EAN: 4018359105273
MPN:
100023555
J01003A1227
Series: BNC

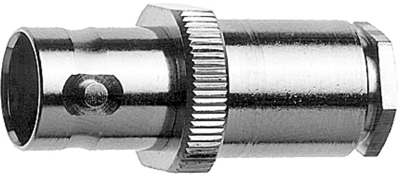

100023555 Telegärtner Coaxial Connectors Image 1
100023555 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.1503 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.15 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1503 €
10 pcs.
10.3530 €
25 pcs.
9.6628 €
50 pcs.
8.7822 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01003A1227, Telegärtner

BNC Straight Jack G2 (RG-59B/U)

Technical Data

  • Design: Jack
  • Connector type: BNC
  • Cable group: RG 59B/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 75 Ω
Technical specifications
Filter Property Value
Product type panel socket
Impedance 75 Ω
Connector BNC
Cable Group RG-59B/U, 0.6-3.7, 0.6L-3.7
Design straight
Contact material brass
Contact connection other
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
