100023414 | Telegärtner

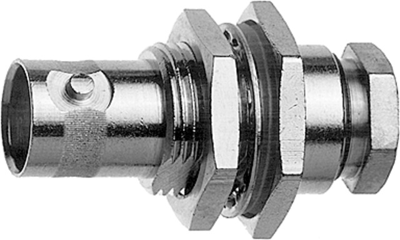

BNC panel socket 50 Ω, KX-21A, RG-178B/U, RG-196A/U, solder/clamp, straight, 100023414
Unit Price (€ / pc.)
15.9103 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.91 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9103 €
10 pcs.
14.0182 €
50 pcs.
13.0543 €
150 pcs.
12.4712 €
500 pcs.
11.8405 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01001A1319, Telegärtner
BNC Bulkhead Jack G3 (RG-178B/U) IP 54
Technical Data
- Design: Jack
- Connector type: BNC
- Cable group: RG 178B/U
- Connection type: Solder/Clamp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Impedance | 50 Ω | |
| Connector | BNC | |
| Cable Group | KX-21A, RG-178B/U, RG-196A/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
