100023396 | Telegärtner
BNC flange socket 50 Ω, RG-58C/U, RG-223/U, solder/clamp, straight, 100023396
Unit Price (€ / pc.)
15.0654 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.07 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0654 €
10 pcs.
13.9944 €
25 pcs.
13.0662 €
50 pcs.
11.8762 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, J01001A0611, Telegärtner

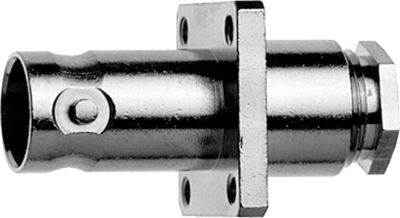

BNC Panel Jack G1 (RG-58C/U), G5 (RG-223/U)
Technical Data
- Design: Jack
- Connector type: BNC
- Cable group: RG 58C/U, RG 223/U
- Connection type: Solder/Clamp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC | |
| Cable Group | RG-58C/U, RG-223/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder/clamp | |
| Version | flange socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
