100027893 | Telegärtner
Coaxial adapter, 50 Ω, BNC plug to BNC socket, straight, 100027893
Unit Price (€ / pc.)
43.3160 € *
Available: 10 pcs.
Next delivery: 17 pcs. on 2025-07-14
Total Price:
43.32 € *
Price list
Quantity
Price per unit*
1 pcs.
43.3160 €
5 pcs.
40.7218 €
15 pcs.
39.1510 €
50 pcs.
37.4255 €
150 pcs.
35.8666 €
*incl. VAT plus shipping costs
Subject to prior sale

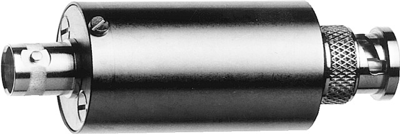

Coaxial adapter, J01008A0807, Telegärtner
BNC-Jack to BNC-Plug
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (f)/BNC (m)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC plug | |
| Connector (exit) | BNC socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
