100027521 | Telegärtner

Coaxial adapter, 75 Ω, BNC socket to BNC socket, straight, 100027521

Order No.: 77F8612
EAN: 4018359313463
MPN:
100027521
J01005A0007Z
Series: COAX

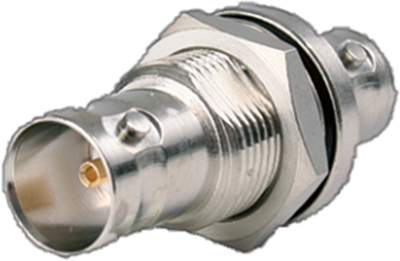

100027521 Telegärtner Coaxial Adapters
Image may differ
Unit Price (€ / pc.)
10.5553 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
10.56 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5553 €
10 pcs.
9.2939 €
50 pcs.
8.6513 €
150 pcs.
8.2705 €
500 pcs.
7.8540 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01005A0007, Telegärtner

BNC-Jack to BNC-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/BNC (f)
  • HDTV ≥ 30 dB / 3 GHz
  • Mount. dim Z04
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 75 Ω
Technical specifications
Filter Property Value
Impedance 75 Ω
Connector BNC socket
Connector (exit) BNC socket
Design straight
Logistics
Property Value
Customs tariff number 85361010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
