100025163 | Telegärtner

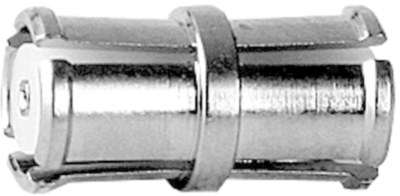

Coaxial adapter, 50 Ω, SMP socket to SMP socket, straight, 100025163
Unit Price (€ / pc.)
16.0650 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.07 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0650 €
10 pcs.
14.9226 €
25 pcs.
13.9230 €
50 pcs.
12.6616 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01392A0001, Telegärtner
SMP-Jack to SMP-Jack
The SMP series comprises micro-miniature RF connectors with a snap coupling mechanism, suitable for use up to 12 GHz. The impedance is controlled at 50 Ohm. The mating faces are designed in accordance with the MIL-STD-348A specification. Cable terminations are either crimp or solder designs, for flexible and semi-rigid cables. The SMP series connectors are primarily used in high-speed signal transmission lines.
FEATURES
- SMP (f)/SMP (f)
- Max. Frequency 12 GHz
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | SMP socket | |
| Connector (exit) | SMP socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
