100023875 | Telegärtner

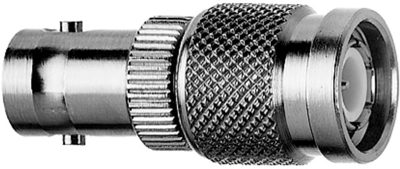

Coaxial adapter, 50 Ω, TNC plug to BNC socket, straight, 100023875

Order No.: 78F9544
EAN: 4018359109769
MPN:
100023875
J01019B0000
Series: COAX
100023875 Telegärtner Coaxial Adapters
Image may differ
Unit Price (€ / pc.)
13.8635 € *
Available: 9 pcs.
Total Price:
13.86 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8635 €
10 pcs.
12.8758 €
25 pcs.
12.0190 €
50 pcs.
10.9242 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01019B0000, Telegärtner

BNC-Jack to TNC-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/TNC (m)
  • Return Loss 33dB/1GHz, 28dB/2GHz, 20dB/4GHz
  • Max. Frequency 4 GHz
  • Mating life ≥ 500

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector TNC plug
Connector (exit) BNC socket
Design straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
