100023692 | Telegärtner

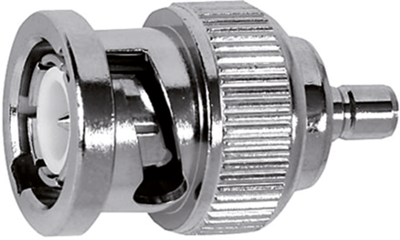

Coaxial adapter, 50 Ω, SMB plug to BNC plug, straight, 100023692
Unit Price (€ / pc.)
11.7572 € *
Available: 20 pcs.
Total Price:
11.76 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7572 €
10 pcs.
10.9242 €
25 pcs.
10.1983 €
50 pcs.
9.2701 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01008G0038, Telegärtner
BNC-Plug to SMB-Plug
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m)/SMB (m)
- Return Loss 25dB/1GHz, 22dB/3GHz
- Max. Frequency 4 GHz
- Mating life ≥ 100
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | SMB plug | |
| Connector (exit) | BNC plug | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
