100023687 | Telegärtner

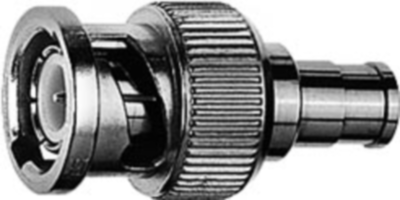

Coaxial adapter, 50 Ω, BNC plug to SMB socket, straight, 100023687
Unit Price (€ / pc.)
17.3978 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.40 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3978 €
10 pcs.
16.1483 €
25 pcs.
15.0773 €
50 pcs.
13.7088 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01008F0030, Telegärtner
BNC-Plug to SMB-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m)/SMB (f)
- Return Loss 28dB/1GHz, 25.5dB/3GHz
- Max. Frequency 4 GHz
- Mating life ≥ 500
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC plug | |
| Connector (exit) | SMB socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
