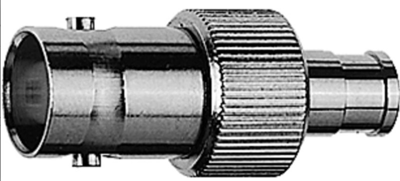

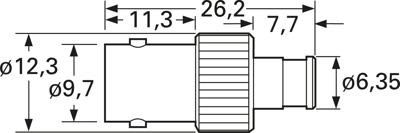

Coaxial adapter, 50 Ω, BNC socket to SMB socket, straight, 100023686

Order No.: 78F670
EAN: 4018359223441
MPN:
100023686
J01008F0013
Series: COAX
100023686 Telegärtner Coaxial Adapters Image 1
100023686 Telegärtner Coaxial Adapters Image 2
Image may differ
Unit Price (€ / pc.)
17.5049 € *
Next delivery: 5 pcs. on 2025-06-06
Total Price:
17.50 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5049 €
10 pcs.
15.4105 €
50 pcs.
14.3514 €
150 pcs.
13.7207 €
500 pcs.
13.0305 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01008F0013, Telegärtner

BNC-Jack to SMB-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/SMB (f)
  • Return Loss 40dB/1GHz, 28dB/2GHz, 24dB/3GHz
  • Max. Frequency 4 GHz
  • Mating life ≥ 100

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Impedance 50 Ω
Connector BNC socket
Connector (exit) SMB socket
Design straight
Logistics
Customs tariff number 85366910
Country of origin TW
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
