100023682 | Telegärtner

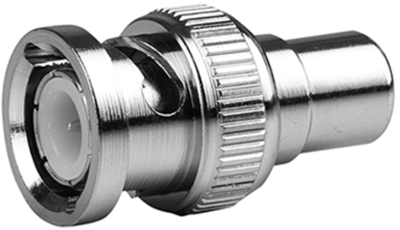

Coaxial adapter, 75 Ω, BNC plug to RCA socket, straight, 100023682
Order No.: 78F976
EAN: 4099889850116
MPN:
100023682
J01008B0839
Unit Price (€ / pc.)
6.9972 € *
Available: 3 pcs.
Total Price:
7.00 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9972 €
10 pcs.
6.4974 €
25 pcs.
6.0690 €
50 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01008B0839, Telegärtner
BNC-Plug to Cinch-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m)/Cinch (f)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: straight
- Impedance: 75 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Connector | BNC plug | |
| Connector (exit) | RCA socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
