100023667 | Telegärtner

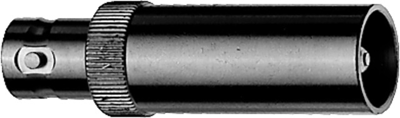

Coaxial adapter, 50 Ω, 4/13 plug to BNC socket, straight, 100023667

Order No.: 78F956
EAN: 4018359107451
MPN:
100023667
J01008A0802
Series: COAX
100023667 Telegärtner Coaxial Adapters
Image may differ
Unit Price (€ / pc.)
24.4783 € *
Available: 1 pcs.
Total Price:
24.48 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4783 €
5 pcs.
23.2169 €
10 pcs.
21.7175 €
25 pcs.
19.8016 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01008A0802, Telegärtner

BNC-Jack to 4/13-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/4/13 (m)
  • Mating life ≥ 500
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector 4/13 plug
Connector (exit) BNC socket
Design straight
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
