100023666 | Telegärtner

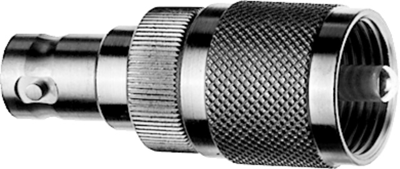

Coaxial adapter, 50 Ω, UHF plug to BNC socket, straight, 100023666

Order No.: 78F958
EAN: 4018359107444
MPN:
100023666
J01008A0801
Series: COAX
100023666 Telegärtner Coaxial Adapters
Image may differ
Unit Price (€ / pc.)
13.9825 € *
Available: 23 pcs.
Total Price:
13.98 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9825 €
10 pcs.
12.9829 €
25 pcs.
12.1142 €
50 pcs.
11.0194 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01008A0801, Telegärtner

BNC-Jack to UHF-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/UHF (m)
  • Mating life ≥ 500
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector UHF plug
Connector (exit) BNC socket
Design straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
