100023664 | Telegärtner

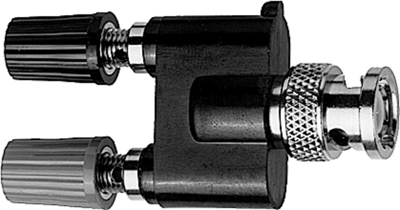

Coaxial adapter, BNC plug to 2 x 4 mm device terminal, straight, 100023664
Unit Price (€ / pc.)
26.2514 € *
Available: 17 pcs.
Total Price:
26.25 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2514 €
5 pcs.
24.8948 €
10 pcs.
23.2883 €
25 pcs.
21.2415 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01008A0627, Telegärtner
BNC-Plug to 2x 4 mm Devices terminals
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC for Ø 4
- Contact pin diameter 4 mm
- Max. Frequency 4 GHz
Technical Data
- Design: straight
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connector | BNC plug | |
| Connector (exit) | 2 x 4 mm device terminal | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
