100023642 | Telegärtner

Coaxial adapter, 50 Ω, BNC socket to UHF socket, straight, 100023642

Order No.: 80F1201
EAN: 4018359107055
MPN:
100023642
J01008A0024
Series: COAX

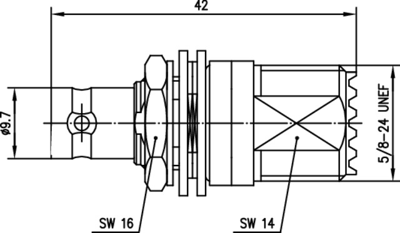

100023642 Telegärtner Coaxial Adapters Image 1

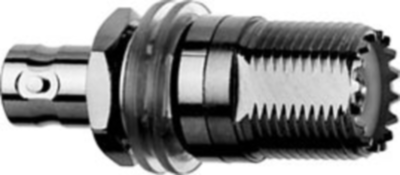

100023642 Telegärtner Coaxial Adapters Image 2
Image may differ
Unit Price (€ / pc.)
36.3545 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
36.35 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3545 €
5 pcs.
34.4743 €
10 pcs.
32.2490 €
25 pcs.
29.4049 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01008A0024, Telegärtner

BNC-Jack to UHF-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/UHF (f)
  • Mount. dim Z52
  • Mating life ≥ 500
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector BNC socket
Connector (exit) UHF socket
Design straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
