100023639 | Telegärtner

Coaxial adapter, 50 Ω, BNC socket to SMA socket, straight, 100023639

Order No.: 78F9517
EAN: 4018359107000
MPN:
100023639
J01008A0019
Series: COAX
100023639 Telegärtner Coaxial Adapters

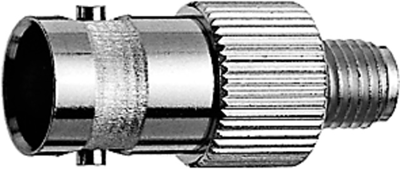

Image may differ
Unit Price (€ / pc.)
11.0313 € *
Available: 9 pcs.
Total Price:
11.03 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0313 €
10 pcs.
10.2459 €
25 pcs.
9.5557 €
50 pcs.
8.6870 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01008A0019, Telegärtner

BNC-Jack to SMA-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/SMA (f)
  • Return Loss 36dB/1GHz, 30.5dB/2GHz, 23dB/4GHz
  • Max. Frequency 4 GHz
  • Mating life ≥ 500

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector BNC socket
Connector (exit) SMA socket
Design straight
Logistics
Property Value
Country of origin TW
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
