100023610 | Telegärtner

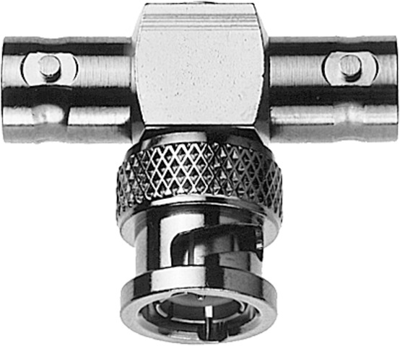

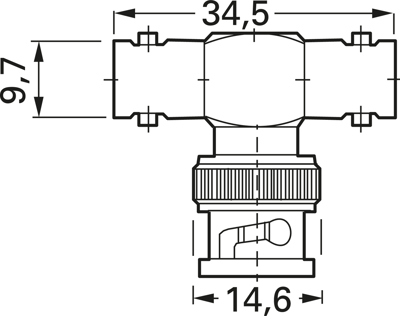

Coaxial adapter, 75 Ω, BNC plug to 2 x BNC socket, T-shape, 100023610
Unit Price (€ / pc.)
13.6255 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
13.63 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6255 €
10 pcs.
12.5307 €
25 pcs.
11.4002 €
50 pcs.
10.2697 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01005A1238, Telegärtner
2x BNC-Jack to BNC-Plug
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (f-m-f)
- Mating life ≥ 500
- Schutzklasse IP54
- Max. Frequency 4 GHz
Technical Data
- Design: T-Shape
- Impedance: 75 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Connector | BNC plug | |
| Connector (exit) | 2 x BNC socket | |
| Design | T-shape |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
